Polaris Air Compressors

Compression Series Air Compressor by FS Elliot

Polaris air compressors are available from 250 hp to 2,500 hp in two and three stage configurations up to 150 psig (10.5 barg) discharge pressure.

Polaris compressors are packed with features and include the most advanced control system available.

Polaris Compressor Benefits:

  • Efficiency – Backward leaning impeller designs, combined with higher operating speeds and “splitter” type impeller vanes on many models promote high efficiencies and operational flexibility
  • Reliability – The Polaris compressors maintain FS-Elliott’s legendary reliability characteristics.
  • Quality – Electronic on-line ordering systems, pre-engineered and prototype tested option groups, the most advanced lean manufacturing techniques – all supervised by an ISO-9000 certified quality system
  • Service – Polaris compressors are serviced locally by a trained and certified team of local distributors that share our dedication to total customer satisfaction.

Standard Polaris Air Compressor Features Include:

  • Inlet Guide Vanes for efficient part load operation (except P-300)
  • Heavy duty baseplate is the most robust in the industry
  • Modulating unloading valve allows compressor to trim load rather than fully unload or shut down during upset conditions.
  • Full size auxiliary oil pump allows operation after main pump failure
  • Horizontally split gearcase, bearings and seals ensure fast and effective on-site maintenance
  • Dynamic balancing of rotating parts
  • Regulus PLC control System – “Best in class” controls for the “Best in class” compressor


View Brochure
FS Elliott Polaris Air Compressor

P300+ Centrifugal Compressor

FS-Elliott’s P300+ Centrifugal Compressor is ideal for manufacturers looking for a small, dependable, and cost-effective option for generating compressed air.

  • Flow: 20 – 60 m3/min | 900 – 2,090 ICFM
  • Power: 190 – 340 kW | 250 – 450 hp
  • Pressure: 3 – 11 barg | 45 – 150 psig

To learn more about the FS-Elliott P300+ Centrifugal Air Compressor, check out the brochure below and contact C.H. Reed, Inc.





View Brochure

P400+ Centrifugal Compressor

FS-Elliott’s P400+ Centrifugal Compressor suits a wide range of applications, delivering trouble-free operation and the lowest overall cost of ownership.

  • Flow: 40 – 100 m3/min | 1,600 – 3,350 ICFM
  • Power: 300 – 520 kW | 400 – 700 hp
  • Pressure: 3 – 11 barg | 45 – 150 psig

To learn more about the features and benefits of the FS-Elliott P400+ Centrifugal Air Compressor specific to your application, take a look at the brochure below and contact C.H. Reed, Inc.





View Brochure

P500+ Centrifugal Compressor

FS-Elliot’s P500+ Centrifugal Compressor combines 50 years of advanced engineering experience in an extremely reliable, energy-efficient, economical package.

  • Flow: 70 – 130 m3/min | 2,600 – 4,500 ICFM
  • Power: 450 – 750 kW | 600 – 1,000 hp
  • Pressure: 3 – 11 barg | 45 – 150 psig

To learn more about the FS-Elliott P500+ Centrifugal Air Compressor, check out the brochure below and contact C.H. Reed, Inc.





View Brochure

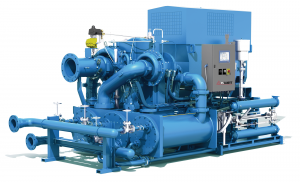

P600+ Centrifugal Compressor

Available in one, two and three stage configurations, the FS-Elliott P600+ Centrifugal Air and Gas Compressor provides a reliable flow up to 180 m3/min or 6,500 ICFM.  The P600+ delivers reliable, ISO 8573-1 CLASS 0, 100% oil-free air to power vital operations in a number of different industries.

  • Flow: 110 – 180 m3/min | 4,000 – 6,500 ICFM
  • Power: 520 – 1,120 kW | 700 – 1,500 hp
  • Pressure: 3 – 11 barg | 45 – 150 psig

To learn more about the FS-Elliott P600+ Centrifugal Air Compressor, check out the brochure below and contact C.H. Reed, Inc. to speak with a centrifugal specialist.





View Brochure

P700+ Centrifugal Compressor

The FS-Elliott P700+ Centrifugal Compressor delivers higher flows for those industries that require constant, ISO 8573-1 CLASS 0, 100% oil-free air.

P700+ Features & Benefits

  • R1000 control system efficiently manages plant load and maximizes energy savings.
  • Three compression stages to lessen power consumption.
  • Low-pressure bearings provide prolonged bearing life.
  • Field serviceable components greatly decrease maintenance costs and minimize production downtime.
  • ISO 8573-1 CLASS 0, 100% oil-free air minimizes downtime from oil contamination in the production line and eliminates the need for off-site condensate disposal.
  • Flow: 170 – 330 m3 | 6,000 – 11,500 ICFM
  • Power: 930 – 2,240 kW | 1,250 – 3,000 hp
  • Pressure: 3 – 11 barg | 45 – 150 psig

To learn more about the FS-Elliott P700+ Centrifugal Air Compressor, check out the brochure below and contact C.H. Reed, Inc. to speak with a centrifugal specialist.
