SP20-Series (125-300 HP)

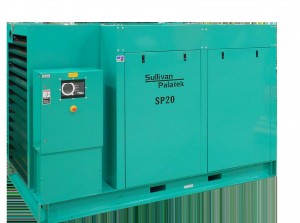

Palatek SP20-Series Industrial Rotary Screw Air Compressor.

Features include:

  • 125-300 HP
  • Electric Motor – 460/575/3/60 standard, 50 cycle 208/380/415, (208/230/3/60 optional on most models)
  • Motor Starter – 460 volt, FVM with 115 volt control, NEMA 1
  • Optional: NEMA 4, Wye Delta, Solid State available.
  • VFD Option – 460 volt, NEMA 1 Standard
  • NEMA 12, NEMA 4 Optional
  • Lube Fill & Level Elbow – One piece fluid fill elbow and level indication sight glass
  • Separator Tank – ASME coded 200 psi tank, relief valve, minimum pressure/check valve.
  • Optional 300 psi available for 250 psi working pressure applications.
  • Cooling System – Large side by side lube and air cooled aftercooler.
  • Air Intake Filter – Oversize dry type with easily replaceable elements
  • Inlet/check valve – One piece housing for dependable performance. Modulation – 0 to 100%.
  • Coupling & Drive – Compressor is flange mounted to motor C-face for positive alignment and direct drive.
  • Controls – S-P microprocessor controller w/ sequencer, lead lag and remote monitoring for up to 8 machines.
  • Optional: Deluxe gauge panel
