Palatek UD-Series (40-100 HP)

For over 65 years, CH Reed has been providing the worlds leading brand products, service, assembly, compressor, finishing systems and application solutions in virtually all types of industries.

UD-Series (40-100 HP)

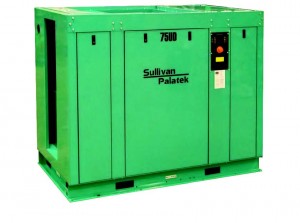

Palatek UD-Series Industrial Rotary Screw Air Compressor.

Features include:

  • 40 – 100 HP
  • T1 Microprocessor – program your daily schedule to suit plant requirements
  • Electric Motor – 460/575/3/60 standard. (other options available)
  • Motor Starter – Full voltage magnetic starter with 120 volt controls
  • Protective Devices – Class 20 Solid State overload relay, anti-reverse, high temp. / pressure shutdown switches (40-60 HP)
  • Lube Fill & Level Elbow – One piece fluid fill elbow and level indication sight glass
  • Separator Tank – ASME coded 200PSIG tank, relief valve, minimum pressure/check valve
  • Cooling System – Cooling system with dedicated fan motor, large side by side lube cooler and aftercooler
  • Air Intake Filter – Heavy duty dry type with easily replaceable elements
  • Inlet/check valve – One piece housing for dependable performance and complete modulation
  • Coupling & Drive – Compressor is flange mounted to motor C-face for positive alignment and direct driven
  • Controls – 0-100% modulation, solenoid controlled for smooth lowest possible no load power


View Brochure
Palatek UD Series
