ARO AFX Piston Pumps and Packages

ARO piston pumps deliver industry proven reliability, economy, and precision control for the transfer of a wide range of flowable materials. The effective, simple design and construction of ARO piston pumps are the reason they are recognized as one of the most dependable, versatile and accurate on the market. Whether you’re moving a small amount of low viscosity fluid a few feet or a large amount of high viscosity material a long distance, ARO has a pump to meet your application requirements.

ARO AFX Two Ball Pumps

ARO AFX Two Ball Pumps are among the most multipurpose in the ARO force line. They are capable of handling applications from simple transfer to the extrusion of low to medium-viscosity materials up to 100,000 centipoise (cps) with fluid delivery up to 18.1 gpm (68.6L/min).

  • AFX AF0409A-X1XXXX
  • AFX AF0409C-XXXX2X
  • AFX AF0409C8-XXXXX
  • AFX AF0411G-XXXXXX
  • AFX AF0422G-XXXXXX
  • AFX AF0430G-XXXXXX
  • AFX AF0623G-XXXXXX
  • AFX AF0645G-XXXXXX
  • AFX AF0660G-XXXXXX
  • AFX AF0810X11-XXXX
  • AFX AF0828B-XXXXXX
  • AFX AF0840G-XXXXXX
  • AFX AF1015X11-XXXX
  • AFX AF1045B-XXXXXX
  • AFX AF1223C5-XXXXX
  • AFX AF1223X11-XXXX
  • AFX AF1265B-XXXXXX
  • AFX 61204X-X
  • AFX NM2202X-X1-X31
  • AFX NM2304X-X1-X11
  • AFX NM2318B-13-X43
  • AFX NM2328A-11-X11


View Brochure

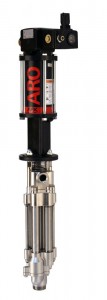

ARO AFX Four Ball Pumps

ARO AFX Four Ball Pumps are engineered to transfer high capacities of low and medium-viscosity fluids up to 12,500 cps with fluid delivery up to 32.8 gpm (124.0 l/min), depending on the application. A common use encompasses circulating fluid from the original container, to the point of use and then back.

  • AFX AF0402M-XXXXXX
  • AFX AF0603M-XXXXXX
  • AFX AF0604M-XXXXXX
  • AFX AF0805M-XXXXXX
  • AFX AF0807M-XXXXXX


View Brochure

ARO AFX Chop Check Pumps

The heavy hitters of the AFX line, ARO AFX Chop Check Pumps are designed to transfer medium to high-viscosity fluids ranging from 15,000 to more than 1,000,000 cps and at delivery rates up to 12.2 gpm (46.3L/min).

  • AFX AF0412S-XXXXXX
  • AFX AF0423S-XXXXXX
  • AFX AF0443-XXXXXXX
  • AFX AF0623S-XXXXXX
  • AFX AF0646S-XXXXXX
  • AFX AF0665S-XXXXXX
  • AFX AF0813S-XXXXXX
  • AFX AF0828S-XXXXXX
  • AFX AF0844S-XXXXXX
  • AFX AF1020S-XXXXXX
  • AFX AF1044S-XXXXXX
  • AFX AF1230S-XXXXXX
  • AFX AF1265S-XXXXXX
  • AFX NM2322E-XX-P4X
  • AFX NM2322F-XX-P4X


View Brochure

ARO AFX Force Packages

Most applications require more than just a pump. ARO AFX Force Packages offer a wide range of transfer, extrusion, and finishing packages that boost your productivity
