Nordson Powder Cartridge Booth Systems

Nordson's comprehensive line of powder cartridge booth systems can meet most any configuration requirements. Whether you need quick color change, speed, flexibility, or increased efficiency, C.H. Reed can provide a Nordson solution to meet and exceed your production goals.

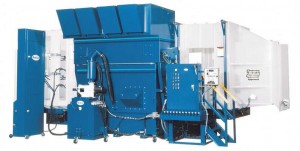

Nordson Excel 2000® Powder Coating System

Each mainpiece of the Nordson Excel 2000® powder coating booth, including the filters, collector/color module, canopy and fan section, have been engineered to enableconstant, uniform air flow. The result is a total air management system that brings powder coating to a new standard of performance. This integrated system provides…

  • More efficient powder recovery
  • Enhanced collector efficiency
  • Superior part coverage

View Brochure

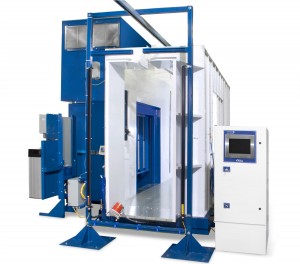

Nordson Excel 3000® Powder Coating System

With plug-and-spray technology and a low profile base, the Excel 3000®delivers large system features and benefits in a compact package that is easy to install, operate and color change.The innovative design of the Excel 3000® provides efficiency and ease of use in one great system. The booth is available in…

  • 8,000 CFM
  • 10,800 CFM
  • 15,000 CFM

View Brochure

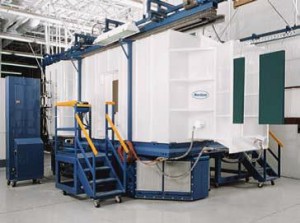

NordsonHorizen® Series Powder Coating System

The Horizen Powder Coating Booth is designed to provide efficient, flexible, and clean coating operations in automatic and manual powder coating applications. It uses a unique “down-draft” design and a cartridge-filter technology. It provides high material utilization and fast color change capabilities in a small, space-efficient, and economical system.

View Brochure

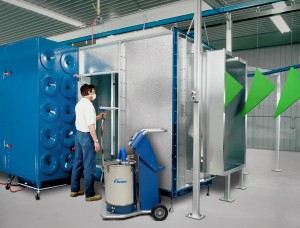

Nordson Vantage® RCM Powder Coating Booth

Vantage®RCM Powder Spray Booths provide an economical solution for basic powder coating operations that require reclaim capabilities in continuous production processes. RCM stands for removable collector module. These booths are available in a standard 5 ft. width and your choice of 9 ft., 12 ft., or 15 ft. lengths. Manual and automatic spray stations are also available.

View Brochure

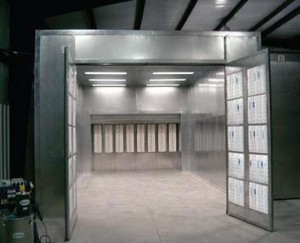

Nordson Vantage® FCM Powder Coating Booth

Nordson’s Vantage® FCM (Fixed Collector Module) Powder Spray Booths provide proven performance in a cost effective design. Vantage FCM Booths are ideal for job shops, start-up operations and economically expanding existing production. It is an ideal booth for coating a wide range of part sizes, from small compact items to large agricultural components. Available in configurations from 6000 to 12000 CFM.

View Brochure

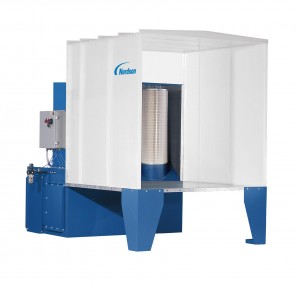

Econo-Coat® Powder Coating Booths

These compact powder spray booths and recovery systems are perfect for batch powder coating small to medium sized parts such as wheels and other automotive parts, test panels, and a variety of other parts. Using proven cartridge-filter technology, the Econo- Coat systems do not require expensive ductwork and explosion venting. Air used to contain and recover overspray passes through the cartridge filters and final filters, and is then exhausted as clean air.

EconoCoat 2001 features include:

  • 5′ high by 5′ wide by 5′ deep work envelope
  • High-performance polypropylene canopy with clear roof
  • Reverse-pulse filter cartridge cleaning for peak performance and long service life
  • Final filters return clean air to the workplace
  • 460VAC, 3-phase, 60Hz standard, with other voltages optional
  • UL508 control panel for safety and ease of use

EconoCoat 1001 features include:

  • Ultra compact 3.75′ H x 2.5′ W x 2.5′ D work envelope
  • Operates on 110-volt electrical supply for fast, easy installation
  • Reverse-pulse filter cartridge cleaning for peak performance and long service life
  • Final filter returns clean air to the workplace
  • Simple controls for ease of use

View Brochure View Brochure
