Industrial Blowers

Aerzen Industrial Blowers


Aerzen Blowers

AERZEN is an international manufacturer of Positive Displacement Blowers, Hybrid Blowers, Turbo Blowers, and Compressors. Aerzen’s high-quality blowers are used in several low pressure, high volume air and gas applications in industrial wastewater treatment, pneumatic conveying of bulk materials, and process gas conveying.

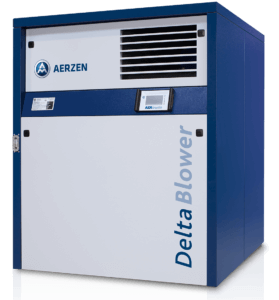

Aerzen G5 Delta BlowerAerzen G5 Delta Blower

The Aerzen Delta Blower Generation 5 is versatile and compact and can be deployed in the most challenging outdoor environments just as safely as in covered indoor spaces. They can be used as both standalone units and incorporated into complex assemblies. Operation-friendly & low maintenance design with space-saving side-by-side setup. The G5 blower maintains low noise levels with no absorption material in the silencer.

Intake volume flow from 20 cfm to 8,800 cfm

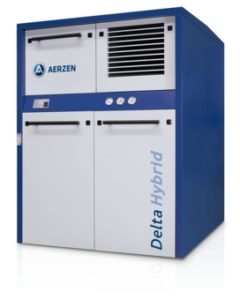

Aerzen Delta Hybrid Blower

Aerzen G5 Delta Hybrid Blower

The Aerzen G5 Delta Hybrid Blower brings together the benefits of blower and compressor technology in one single unit. This combination provides new possibilities in creating positive and negative pressure and features energy savings up to 15%.

The Hybrid Blower can be used for an extensive range of industrial applications. It can be used anywhere, including areas with very high ambient temperatures or for applications with extreme intake temperatures. Processed air is 100% free of oil and absorption materials and features Reduced life-cycle costs with High levels of reliability and long service life.

Intake volume flow from 65 cfm to 5,300 cfm

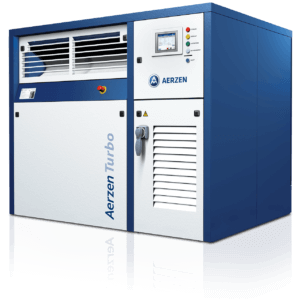

Aerzen Turbo BlowerAerzen Turbo Blower

Aerzen Turbo Blowers are single-stage, high-speed radial, direct-drive turbo blowers designed to meet varying flow and pressure requirements in many different processes. This modern frequency-controlled, gearless driven machine along with lubricant-free aero bearings, guarantees an economical, reliable, and maintenance-free compressor operation.

Volume flow from 500 cfm to 20000 cfm



Aerzen Delta Screw CompressorAerzen Screw Compressors

The single-stage, oil-free screw compressors in the Aerzen Delta Screw Generation 5 plus series are universal tools. These innovative machines are belt-driven to provide air and nitrogen applications at positive pressure, negative pressure, and in a range of nominal sizes. The flexible modular system allows for almost any combination of compressors and accessory components.

Oil-free compression in the pressure range up to 4,5 bar (a) for volume flows from 120 m³/h to 2,650 m³/h (71 to 1450 cfm)






High-Volume Industrial Blowers

Industrial blowers are machines capable of producing large amounts of airflow in a specific part of a building or structure. These industrial blowers can also heat and cool different areas, creating a better work environment in manufacturing facilities or warehouses. In some cases, industries require industrial blowers to complete work safely and efficiently.

Overall, industrial blowers are versatile machines, as they’re used across multiple industries to suit various needs when it comes to flowing air and gas. These blowers are specifically created for different purposes to accommodate these demands, as their designs range from simple to complex. Unlike air compressors (where the air is squeezed into a smaller space at higher pressures) blowers move air and gas at much higher volumes, but lower pressures. Understanding their inner workings and functions is important to finding the right type of industrial blower for your individual industry needs and purposes.

How Industrial Blowers Work

Ranging from basic to involved designs, industrial blowers typically use fan blades. Some use pressure pumps to move even larger volumes of air. A major part of these machines is their rotating fan blades, which are controlled by a motor or turbine. The kinetic energy of these spinning blades increases outlet air pressure.

Because many industries use industrial blowers, a number of different types exist to properly accommodate numerous purposes. These machines can be used in different environments and fulfill a range of commercial needs.

Common Uses for Industrial Blowers

Low-pressure, high-volume technologies, like Industrial blowers, are mainly employed to blast continuous streams of air and gas in large quantities, but at much lower pressures than typical compressed air systems. Additionally, they can also be used to create a clean stream of air for ventilation purposes. In some applications, these blowers work with hazardous materials. In other food and beverage applications, blowers can be used to decontaminate meats, poultry products, dairy products, fruits, veggies, and beverages. Because of the many different functions, industrial blowers appear in a wide range of industries, environments, and applications around the world:

  • Wastewater Treatment
  • Production assembly lines.
  • Food processing.
  • Room pressurization.
  • Equipment or product cooling.
  • Paint booths.
  • Coal mines.
  • Woodworking shops.
  • Cement Plants.
  • Pneumatic Conveying.
  • Chemical processing operations & petroleum refining.
  • Plastics process cooling.
  • General combustion air.
  • Removal of welding smoke and fumes.
  • Electrical cabinet ventilation.
  • Ink drying in printing rooms.
  • And other ventilation, cooling, and exhausting applications.

Find the Right Industrial Blower for Your Business

Whether you work in a sealed, indoor environment or a free, outdoor area, we have a range of industrial blowers designed for any setting you need. Aerzen’s high-volume, low-pressure industrial blowers can fulfill multiple purposes in different air and gas applications.

Additionally, our wide selection of industrial blowers also offers easy setup, versatile functions, low-maintenance options, energy-efficient, and offer space-saving designs. These blowers can also increase plant production, reduce material usage, increase safety and improve the finished product. That way, you can boost your bottom line and improve productivity — all while keeping the working environment safe.

Because of our extensive industrial blower range, we can work with you to help you find the correct machine for your specific application. Browse our product selection above to get started, and contact C.H. Reed for pricing and availability!
